AnyEdge¶

Setup AnyEdge

Overview¶

AnyEdge is a dynamic, distributed solution designed to optimize call distribution and load balancing across multiple regions. It enhances redundancy, improves call routing efficiency, and ensures high availability for VoIP traffic.

ConnexCS AnyEdge acts as a load balancer / dispatcher. It balances the traffic between the SIP servers and the customers.

It's a next-generation solution for the Edge Session Initiation Protocol (SIP).

It provides high-reliability and custom Call Distribution algorithms (Weights and Priorities).

Each customer benefits from a unique, dedicated IP address through AnyEdge

Calls are routed to the nearest AnyEdge server for optimal performance and reduced latency.

Key Features¶

• Global Load Balancing: Routes calls intelligently based on region and performance.
• Failover Protection: Ensures seamless call routing in case of outages.
• Optimized Call Distribution: Distributes traffic efficiently to reduce latency.
• Flexible Configuration: Supports various routing policies and priority settings.

How Traffic Flows Through AnyEdge¶

flowchart TD
    A[Client / Carrier] --> B[Anycast IP]
    B --> C[Nearest PoP via BGP]
    C --> D[Edge Processing]
    D --> E[Load Balancer]
    E --> F[SIP Servers / Destinations]
    F --> G[Call Connected]

    %% Failover path
    C -. Failure .-> H[Alternate PoP]
    H --> D

Benefits¶

• Improved Redundancy: Avoids downtime by automatically rerouting calls.
• Optimized Call Routing: Ensures better call quality and lower latency.

Anycast Architecture: Global IP Routing, BGP Behavior, and PoP Selection¶

AnyEdge uses Anycast architecture to provide high availability, low latency, and automatic failover for voice traffic.

What is Anycast?¶

Anycast is a networking technique where the same IP address is advertised from multiple geographic locations (Points of Presence or PoPs).

This allows incoming traffic to be routed to the nearest or best-performing location instead of a single fixed destination.

Role of BGP in Routing¶

AnyEdge relies on Border Gateway Protocol (BGP) to route traffic.

• Each PoP advertises the same Anycast IP
• BGP determines the optimal path based on network conditions such as latency, hop count, and availability
• Traffic is automatically directed to the closest or most efficient PoP

This ensures that calls enter the network at the most optimal location without manual intervention.

Points of Presence (PoPs)¶

PoPs are distributed edge locations where AnyEdge infrastructure is deployed.

Each PoP:

• Receives incoming traffic via the Anycast IP
• Performs initial routing and validation
• Forwards traffic to the appropriate destination or backend system

Having multiple PoPs ensures geographic redundancy and improved performance.

Automatic Failover¶

If a PoP becomes unavailable due to network issues or outages:

• BGP automatically withdraws routes from the affected PoP
• Traffic is rerouted to the next closest available PoP
• No manual failover configuration is required

This provides seamless failover and minimizes service disruption.

Traffic Flow Overview¶

1. A call is sent to the Anycast IP
2. BGP routes the call to the nearest PoP
3. The PoP processes and forwards the call to the configured destination
4. If the PoP is unavailable, traffic is automatically rerouted to another PoP

Key Benefits¶

• Low Latency – Traffic enters the network at the nearest location
• High Availability – Multiple PoPs ensure redundancy
• Automatic Failover – No manual intervention required
• Scalability – Traffic is distributed globally across infrastructure

Failover Behavior and Traffic Recovery¶

AnyEdge is designed to provide automatic and seamless failover to maintain service continuity during network or infrastructure issues.

What Triggers Failover?¶

Failover is automatically triggered when a routing endpoint or PoP becomes unavailable due to:

• Network connectivity loss
• SIP server or destination failure
• Timeout or no response from destination
• Health check failures
• Routing capacity limits being exceeded

Health Checks and Monitoring¶

AnyEdge continuously monitors the health of routing destinations and infrastructure using:

• SIP response validation (e.g., no response, error responses)
• Connectivity checks to endpoints
• Performance indicators such as latency or failures

If a destination fails these checks, it is temporarily excluded from routing.

Failover Behavior¶

When a failure is detected:

1. Traffic is immediately removed from the affected destination or PoP
2. Routing shifts to the next available destination based on configured logic (e.g., Sort Index, Weight, or Random)
3. If an entire PoP is unavailable, BGP automatically reroutes traffic to the nearest available PoP
4. Calls continue to be processed without manual intervention

Failover Timing¶

• Failover is near real-time, depending on detection speed and network conditions
• No manual switching is required
• Recovery is automatic once the failed destination becomes healthy again

Recovery Behavior¶

• Once a destination or PoP is restored and passes health checks, it is automatically reintroduced into routing
• Traffic distribution resumes based on the configured routing logic

Operational Considerations¶

• Ensure multiple destinations or PoPs are configured to enable effective failover
• Monitor call failures and routing patterns via CDRs
• Validate routing priorities (Sort Index / Weight) to control fallback behavior

Load Balancing Logic and Routing Strategies¶

AnyEdge uses multiple routing strategies to distribute traffic efficiently across destinations.

Understanding when and how to use each method is essential for optimal performance and reliability.

Weight-Based Routing¶

How it works:

• Calls are distributed based on weight ratio (e.g., 10:1)
• Higher weight receives more traffic

When to use:

• For load balancing across multiple active destinations
• When destinations have different capacities

Real-World Routing Scenarios¶

Scenario 1: Destination Server Failure¶

Situation: A configured SIP destination becomes unavailable or stops responding.

Behavior:

• The system detects failure through SIP timeouts or error responses
• The destination is temporarily removed from routing
• Calls are automatically routed to the next available destination

NOC Action:

• Verify destination status (IP, port, SIP response)
• Check recent CDRs for failure patterns
• Confirm fallback routes are correctly configured

Scenario 2: Complete PoP Failure¶

Situation: An entire PoP becomes unreachable due to network outage or infrastructure failure.

Behavior:

• BGP withdraws the affected PoP route
• Traffic is automatically redirected to the next closest available PoP
• No manual intervention is required

NOC Action:

• Monitor traffic shift in real time
• Validate connectivity to alternate PoPs
• Check for increased latency or load on other PoPs

Scenario 3: Uneven Traffic Distribution¶

Situation: Traffic appears uneven across destinations.

Behavior:

• Distribution follows configured weights
• Short-term imbalance may occur due to randomness

NOC Action:

• Validate weight configuration
• Analyze CDR trends over time (not just short intervals)

AnyEdge Setup¶

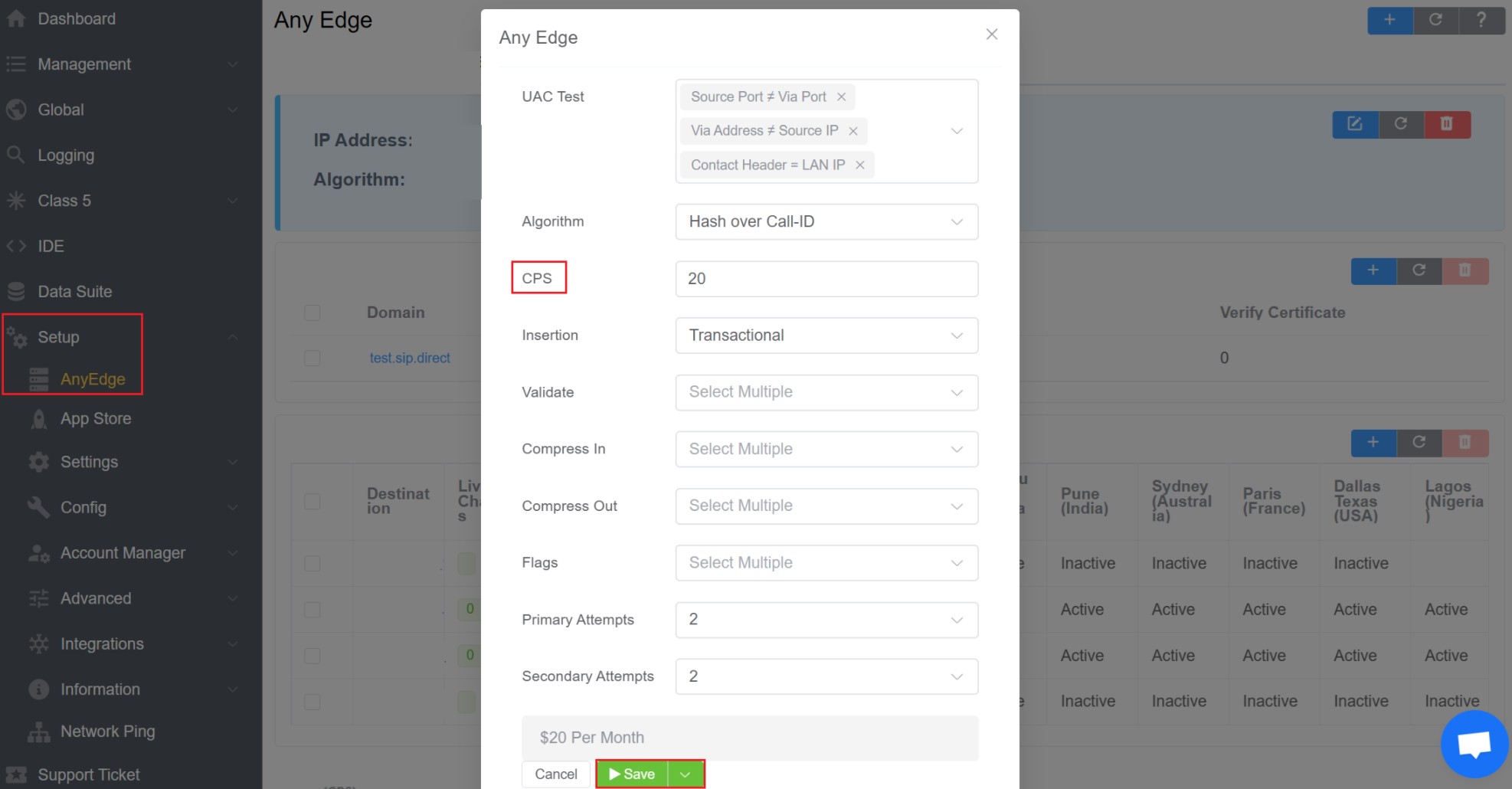

Configure AnyEdge¶

Click the button to set the following:

• User Account Control (UAC) Test (NAT): Select the method used to detect whether NAT is in use.

  See Far-End NAT Traversal for details.

• Algorithm: How to distribute calls.

  See Inbound Proxy / Dispatcher / Load Balancer for details.

• CPS: Total calls per second allowed.

  See Metrics for details

• Insertion: Set whether the server acts 'Stateless' (no reply needed) or 'Transactional' (waits for a reply).

• Validate: Find the checks to use, if any.

  For example, a Basic Check will verify if all the fields are appropriately formed, or else it will reject the package (protecting from attacks such as buffer overflow).

  Select one or more checks to validate those fields.

  See SIP Packet Validation for details.

• Compress In: Select method(s) to compress inbound data, not only for lower bandwidth use but also to avoid User Datagram Protocol (UDP) fragmentation.

  See Compaction and Compression for details.

• Compress Out: Helps when using Outbound Proxy.

  See Compaction and Compression for details.

• Flags: You may choose from 2 types of flags:

  • Registrations to AnyReg: The AnyReg registration server will hold the AnyEdge registrations for all your customers.
  • AnyEdge SIP Ping Replies: Click here to know more.

• Primary Attempts: (not useful for less than 3 servers) Set the number of attempts before going to a second zone.

• Secondary Attempts: (not useful for less than 3 servers) Set the number of attempts before going to a third zone.

AnyEdge Domain¶

After AnyEdge configuration is complete, click next to Domains to configure a specific domain with the same settings as Configure AnyEdge.

It can provide added Transport Layer Security (TLS)/ Secure Sockets Layer (SSL) configuration for SIP protection.

1. You can choose various versions of SSL and TLS certificates from the drop-down menu.
2. If you enable the Verify Certificate option, then it will verify the client's certificate.
3. If you enable the Require Certificate option, it means the client should have the certificate.

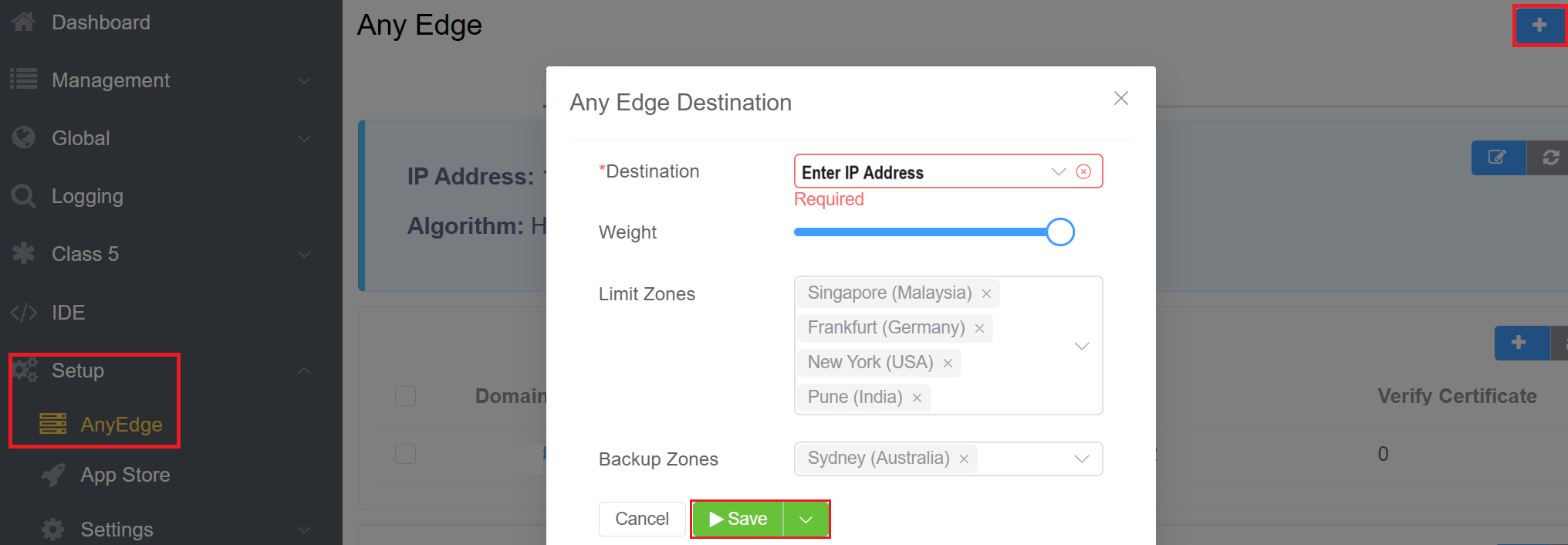

AnyEdge Destinations¶

Click button to specify the Destination IP, and one or more Limit (Primary) and Backup (Secondary) Zones.

• Destination: Enter the Customer's server's IP address.
• Weight: You can allocate the weight to the server that permits the highest traffic or call volume through that server. This means the server with the highest weight will handle more traffic or calls compared to other servers.

• Limit Zones: Limit Zones control access to specific servers within a load balancer. By defining limit zones, you restrict access to certain servers from designated zones. For example, if Sydney isn't added to the limit zone configuration, individuals from Sydney will be unable to access this designated server within the load balancer.
• Backup Zones: Whenever the server of the main zone fails, the traffic will route to the zone selected in the Backup Zones field.

Capabilities¶

The ConnexCS AnyEdge load balancer is a high-performance application designed for maximum throughput using several cores.

Combined with global PoPs and detailed metrics, we’ve got you covered even if you have requirements that exceed 10K calls per second.

Far End NAT Traversal¶

NAT (Network Address Translation) is a technique that intermediates communication between a LAN (Local Area Network) and a WAN (Wide Area Network aka. Internet).

When a packet traverses NAT, the UDP packet headers are appropriately rewritten by your NAT device; thus, the headers in the SIP packet are often not rewritten.

Here are some ways that AnyEdge facilitates these SIP rewrites:

1. Hardcode the external IP Address.
2. Session Traversal Utilities for NAT (STUN) to find the external IP address.
3. SIP (Session Initiation Protocol) ALG (Application Layer Gateway).
4. Far End NAT Traversal.

You can use any of the following indicators to detect if NAT is present in the UAC.

• Search the Contact header field for occurrences of RFC1918 / RFC6598 addresses.
• Use the "received" test: "address in Via" to compare against the source IP address used for signaling.
• Search the top-most VIA for the occurrences of RFC1918 / RFC6598 addresses.
• Search the Session Description Protocol (SDP) for the occurrences of RFC1918 / RFC6598 addresses.
• Test if the source port is different from the "port in Via."
• Compare the "address in Contact" with the source IP address used for signaling.
• Compare the "Port in Contact" with the source port used for signaling.

Inbound Proxy / Dispatcher / Load Balancer¶

The primary use case for AnyEdge is to disseminate calls to a pool of SIP Servers. You can configure the following call strategies as follows:

• Hash over callid
• Hash over from uri
• Hash over to uri
• Hash over request-uri
• Weighted round-robin (next destination) - the destination's weight determines the number of times it's selected before going to the next on
• Hash over authorization-username (Proxy-Authorization or "normal" authorization) - If a username isn't found, use weighted round-robin.
• Random (using rand())
• It selects the first entry in the set.

Metrics¶

You must set the load balancer's CPS limit. You can view both the CPS and the totals for the number of calls that failed because of the CPS breach.

Use the following graphs to view the metrics:

1. CPS - Calls Per Second
2. CPS Breach

SIP Packet Validation¶

Malformed packets can cause problems for your internal network, such as, buffer overflow attacks.

To avoid these problems, you can select some specific options while enabling SIP Packet Validation:

• Check the integrity of the SDP body (if it exists).
• Check the format and the integrity of each header body.
• Don't check the "Max-Forwards" header.
• Checks the "R-URI" and whether the domain has valid characters.
• Checks the URI of the "From" field and whether the domain has valid characters.
• Checks the URI of the "To" field and whether the domain has valid characters.
• Checks the URI of the "Contact" field.

If a packet fails to validate, you can select a method to handle it. You can handle this with a "400" error or with an "X-Validate-Fail" header.

The reasons why a packet fails to validate are:

• No SIP message
• Header Parsing error
• No "Call-ID" header
• No "Content-Length" header for transports that require it (for example, TCP)
• Invalid Content-Length, different from the size of the actual body
• SDP body parsing error
• No "Cseq" header
• No "From" header
• No "To" header
• No "Via" header
• Request URI parse error
• Bad hostname in "R-URI"
• No "Max-Forwards" header
• No "Contact" header
• Path user for non-Register request
• No "Allow" header in the 405 reply
• No "Min-Expire" header in the 423 reply
• No "Proxy-Authorize" header in the 407 reply
• No "Unsupported" header in the 420 reply
• No "WWW-Authorize" header in the 401 reply
• No "Content-Type" header
• "To" header parse error
• "From" header parse error
• Bad hostname in the "To" header
• Bad hostname in "From" header
• "Contact" header parse error

Compaction and Compression¶

To reduce the size of packets (to prevent fragmentation), you can apply compaction and compression.

Compression uses an algorithm such as "gzip" and compressing the message at the level of the data.

Compaction uses well-established short notations for longer headers.

Compaction¶

To use compaction, you need to select Compact Enabled.

You can also create an allow list of fields if you don't want to compact them.

You can enable Compaction for calls in and/or calls out.

See the table for available headers.

Compression¶

You can enable Compression or Decompression for Inbound and/or Outbound by selecting either "Compress Enabled (Deflate)," "Compress Enabled GZip," or "Decompress Enabled."

The process of data compression depends on how auxiliary flags control it.

Registration Proxy¶

Having High Availability (HA) with registrations ensures that you will always have an IP address which matches the hole punched when the UAC registers.

Unlike other HA setups, AnyEdge ensures that standard NAT hole-punching can work with UAC > UAS calls / messages even after the end-point connected to the UAC fails.

Outbound Proxy¶

If you have a pool of several servers, you can proxy your communications via AnyEdge, allowing a single IP address to communicate externally.

AnyEdge SIP Ping Replies¶

The UAS is pinging the AnyEdge Load Balancer and further, the Load Balancer passes the pings to the Opensips Servers. Further, the Opensips Servers reply to the Load Balancer, and then the ping gets to the UAS. In case, any of the SIP servers are slow, it slows down the AnyEdge Load Balancer as well. Thus, introducing Latency in the system.

Therefore, the AnyEdge SIP Ping Replies feature will help fix this issue. This feature will allow the AnyEdge Load Balancer to reply to the UAS ping messages without passing them to the Opensips Server. This feature will fix the latency issue, and the application latency will be closer match to what we expect.

This feature adds another capability where the AnyEdge Load Balancer is aware of the latency of the Opensips (backend) servers. The AnyEdge Load Balancer measures the latency on backend servers by checking that the servers are online. This can be done by adding the Timestamps.

According to RFC 3261, there is a proper header Timestamp available. We include this Timestamp header with the message we're going to send. When we get a reply, it comes along with the Timestamp as well. The Timestamp of the message and reply should be identical, which measures the latency or calculates the difference.

How to Enable AnyEdge SIP Ping Replies¶

1. Go to Setup AnyEdge and click on the Edit button.
2. You will see a window, select the AnyEdge SIP Ping Replies from the dropdown in Flags to enable this feature.
3. Click on Save.

Security and Traffic Protection¶

AnyEdge provides multiple layers of security to protect the network from malicious traffic, unauthorized access, and service disruption.

DDoS Protection¶

How it works:

• Incoming traffic is distributed across multiple PoPs using Anycast
• High volumes of traffic are absorbed and filtered at the edge
• Suspicious or excessive traffic is rate-limited or dropped

What is blocked:

• Traffic spikes intended to overwhelm the system
• Repeated connection attempts from suspicious sources

SIP Validation¶

How it works:

• SIP messages are inspected for correctness and compliance
• Invalid or malformed SIP requests are rejected

What is allowed:

• Properly formatted SIP requests (e.g., valid INVITE, REGISTER)
• Authenticated and expected traffic

What is blocked:

• Malformed SIP packets
• Unauthorized or spoofed SIP messages
• Requests that do not follow protocol standards

Traffic Hygiene¶

How it works:

• Filters are applied to ensure only legitimate traffic enters the system
• Unknown or untrusted sources can be restricted
• Rate limits and validation checks maintain clean traffic flow

What is allowed:

• Traffic from configured and trusted sources
• Requests within defined limits and thresholds

What is blocked:

• Unknown IPs (if restricted)
• Excessive or abnormal traffic patterns
• Suspicious or non-compliant requests

Attack Mitigation¶

How it works:

• Continuous monitoring detects abnormal behavior
• Traffic is automatically adjusted or rerouted to maintain stability
• Unhealthy or malicious endpoints are excluded from routing

Examples of mitigated threats:

• SIP flooding attacks
• Call spoofing attempts
• Traffic anomalies indicating fraud or misuse
